    Undercabinet Lamp 1005.1013

    Undercabinet Lamp 1005.1013

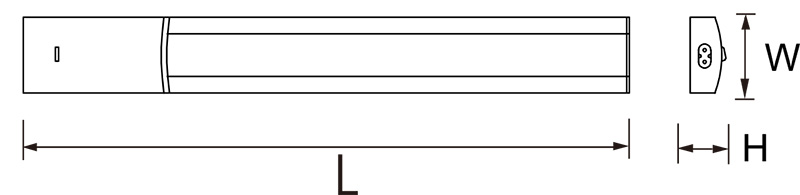

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1005.1013.011005.1013.02
    Product Dimensions (mm)LxWxH: 440x61x30LxWxH: 600x61x30
    Finish/ColorWhiteWhite
    MaterialAluminumAluminum
    On/Off SwitchRock SwitchRock Switch
    Cable Length (m)1.5m1.5m
    Cable Spec.2x0.75mm22x0.75mm2
    PlugEuroplugEuroplug
    Terminal BlockNN
    AccessoriesScrews,BracketsScrews,Brackets
    InstallationSurface mountedSurface mounted
    Class ⅡⅡ

    Electrical Characteristics

    +
    Code1005.1013.011005.1013.02
    Total Power Consumption Wattage/On-Mode Power 7.5W10.5W
    Product Voltage220-240220-240
    Herts50/6050/60
    IP RatingIP20IP20
    Luminous Flux500lm800lm
    Kelvin 3000K/4000K/6000K3000K/4000K/6000K
    LED Package TypeSMDSMD
    Lamp/Bulb Specification (if not LED)N/AN/A
    Lamp/Bulb included?N/AN/A
    SDCM＜6＜6
    CRI＞80＞80
    Power Factor>0.5>0.5
    UGRN/AN/A

    Function

    +
    Code1005.1013.011005.1013.02
    LinkableN/AN/A
    CCT functionN/AN/A
    Multi-section PowerN/AN/A
    Dimmable N/AN/A
    SensorN/AN/A
    EmergencyN/AN/A
    Battery Spec.N/AN/A
