Products > Spot light > Spot light 1009.1004

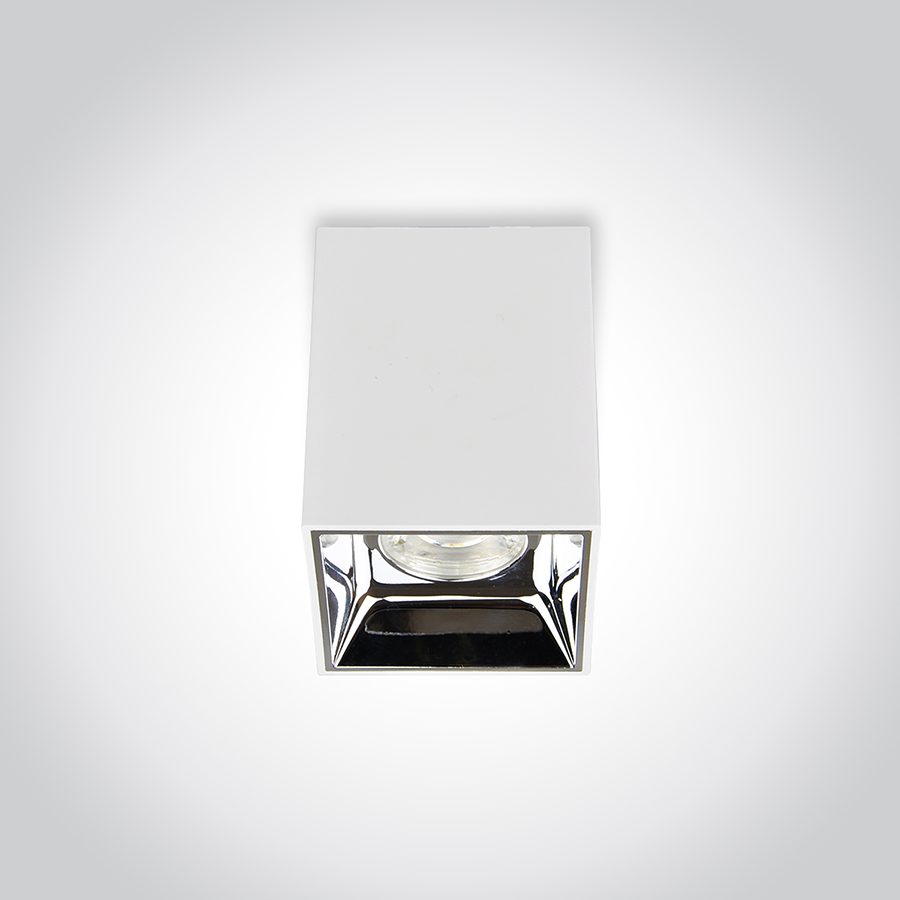

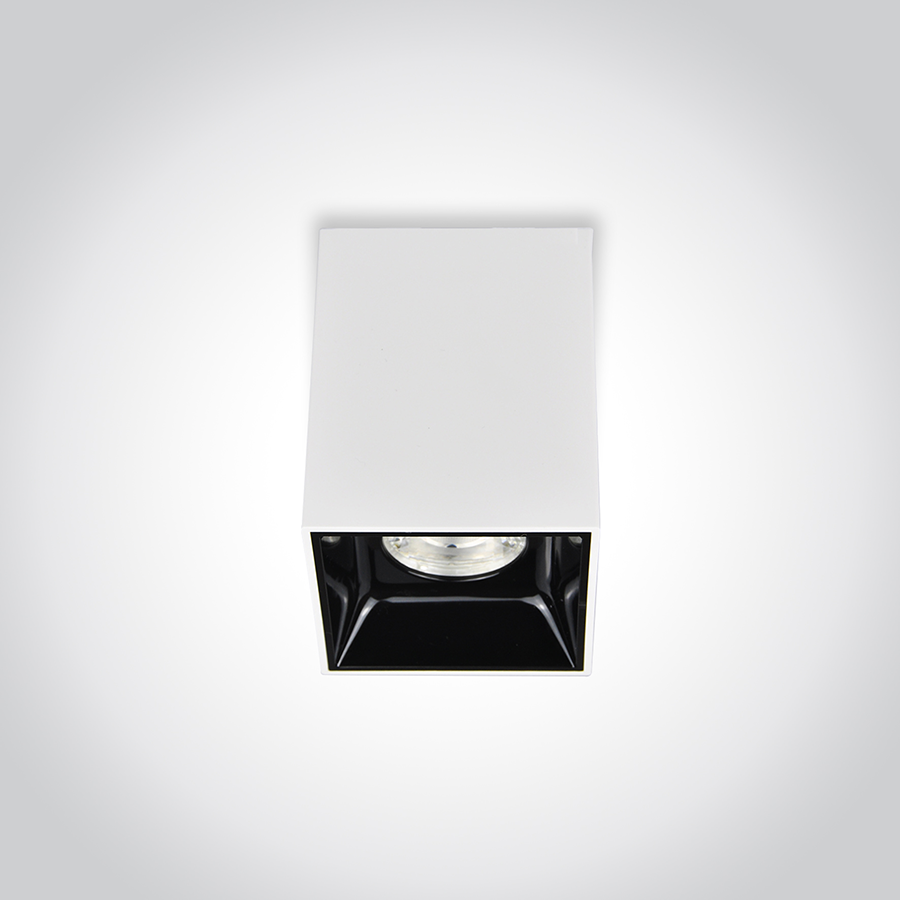

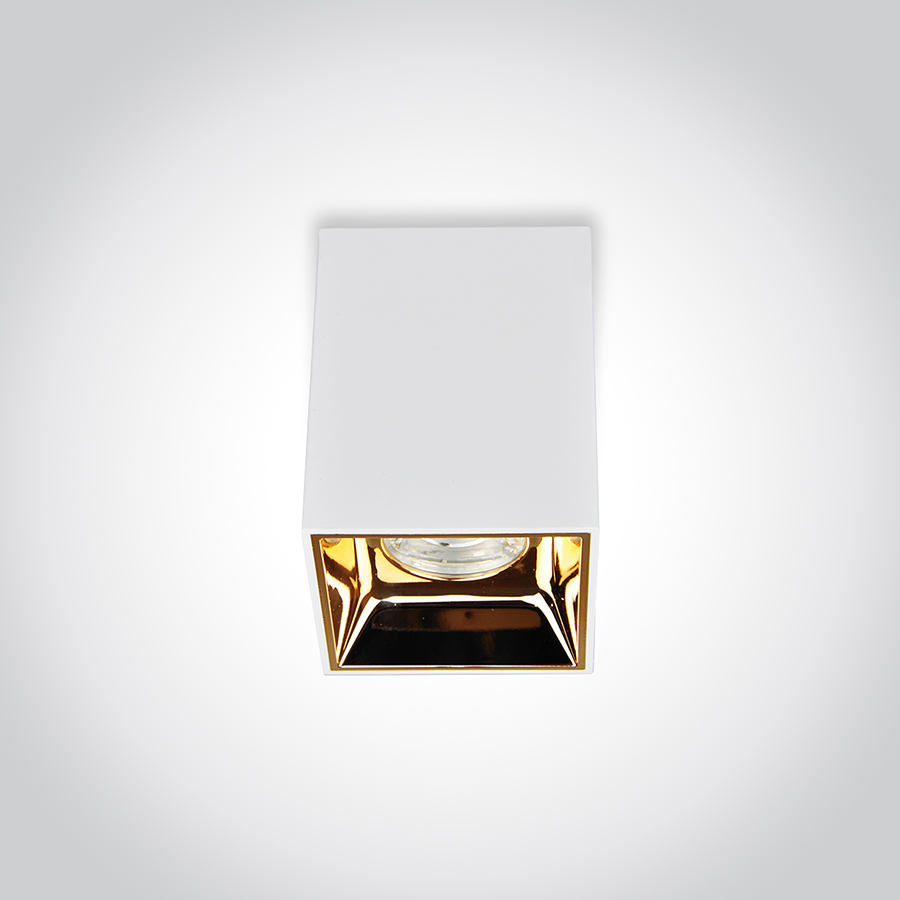

Spot light 1009.1004

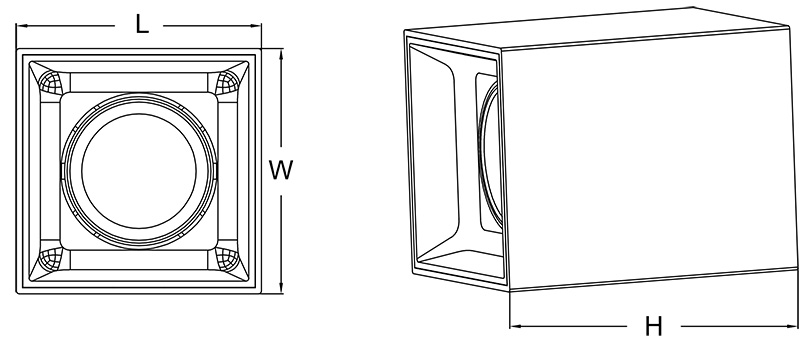

Line Drawing
Downloads
Physical Specification
| Code | 1009.1004.01 | 1009.1004.02 |
| Product Dimensions (mm) | L76×W76×H100mm | L76×W76×H100mm |
| Finish/Color | Optional | Optional |
| Material | PC+ Aluminum | PC+ Aluminum |
| On/Off Switch | N | N |
| Cable Length (m) | 12cm | 12cm |
| Cable Spec. | H03VVH2-F 2×0.75mm² | H03VV-F 2×0.75mm² |
| Plug | N | N |
| Terminal Block | N | N |
| Installation | Surface mounted | Surface mounted |
| Class | 2 | 2 |
Electrical Characteristics
| Code | 1009.1004.01 | 1009.1004.02 |
| Total Power Consumption Wattage/On-Mode Power | 5 | 7 |
| Product Voltage | 220-240 | 220-240 |
| Herts | 50/60 | 50/60 |
| IP Rating | IP20 / IP54 | IP20 / IP54 |
| Luminous Flux | 400 | 600 |
| Kelvin | 3000K/4000K/6000K | 3000K/4000K/6000K |
| LED Package Type | SMD | SMD |
| Lamp/Bulb Specification (if not LED) | LED light source / LED GU10 bulb | LED light source / LED GU10 bulb |
| Lamp/Bulb included? | N | N |
| SDCM | ＜6 | ＜6 |
| CRI | ＞80 | ＞80 |
| Power Factor | >0.5 | >0.5 |
| UGR | >19 | >19 |
Function
| Code | 1009.1004.01 | 1009.1004.02 |
| Linkable | N | N |
| CCT function | Optional | Optional |
| Multi-section Power | N | N |
| Dimmable | N | N |
| Sensor | N | N |
| Emergency | N | N |
| Battery Spec. | N/A | N/A |
