Desk lamp 1004.1002

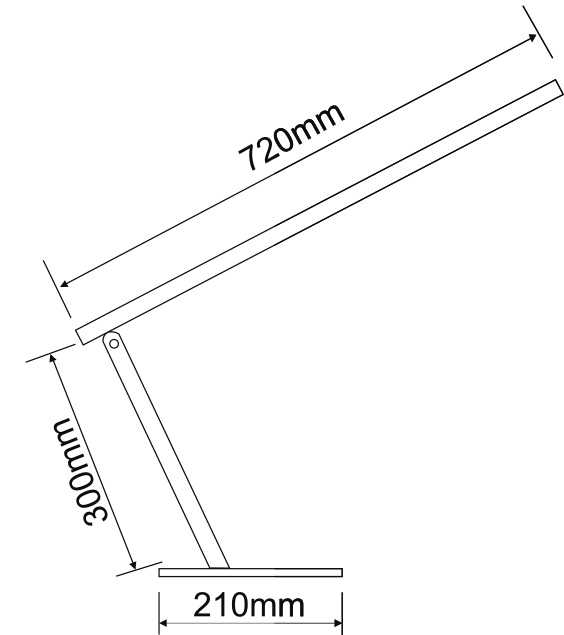

Line Drawing
Downloads
Physical Specification
| Code | 1004.1002 |
| Product Dimensions (mm) | Base:210mm Arm:300mm & 720mm |
| Finish/Color | Sliver/White |
| Material | Aluminium+Plastic |
| On/Off Switch | Rock Switch |
| Cable Length (m) | 1.5m |
| Cable Spec. | 24AWG |
| Plug | Europlug |
| Terminal Block | N |
| Accessories | N |
| Installation | N/A |
| Class | Ⅱ |
Electrical Characteristics
| Code | 1004.1002 |
| Total Power Consumption Wattage/On-Mode Power | 10W |
| Product Voltage | 220-240V AC |
| Herts | 50/60 |
| IP Rating | IP20 |
| Luminous Flux | 1000lm |
| Kelvin | 3000K/4000K/6000K |
| LED Package Type | N/A |
| Lamp/Bulb Specification (if not LED) | SMD |
| Lamp/Bulb included? | Yes |
| SDCM | ＜6 |
| CRI | ＞80 |
| Power Factor | ＞0.5 |
| UGR | N/A |
Function
| Code | 1004.1002 |
| Linkable | N |
| CCT function | N |
| Multi-section Power | N |
| Dimmable | N |
| Sensor | N |
| Emergency | N |
| Battery Spec. | N/A |
