Work light 1006.1003

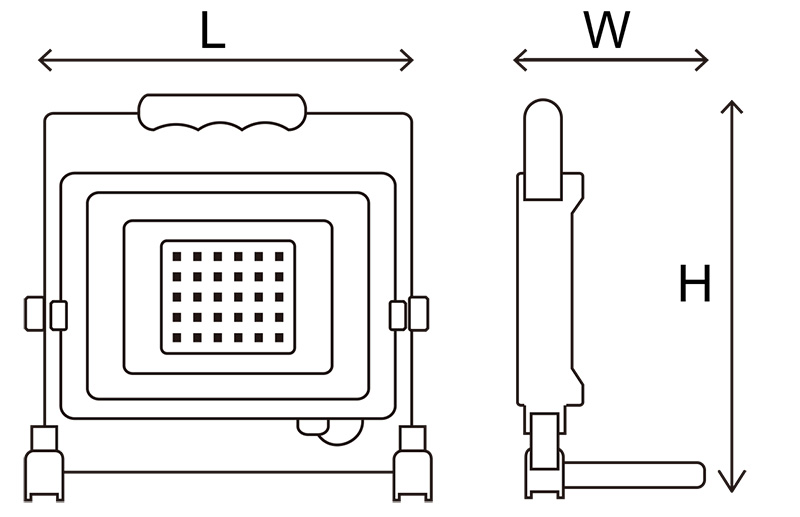

Line Drawing
Downloads
Physical Specification
| Code | 1006.1003.01 | 1006.1003.02 | 1006.1003.03 |
| Product Dimensions (mm) | L285×W185×H290mm | L305×W205×H365mm | L360×W230×H400mm |
| Finish/Color | Black + Yellow | Black + Yellow | Black + Yellow |
| Material | Aluminium+glass+iron | Aluminium+glass+iron | Aluminium+glass+iron |
| On/Off Switch | N | N | N |
| Cable Length (m) | 1.5m | 1.5m | 1.5m |
| Cable Spec. | H05RN-F 3x1.0mm2 | H05RN-F 3x1.0mm2 | H05RN-F 3x1.0mm2 |
| Plug | Y | Y | Y |
| Terminal Block | N | N | N |
| Accessories | N | N | N |
| Installation | N | N | N |
| Class | I | I | I |
Electrical Characteristics
| Code | 1006.1003.01 | 1006.1003.02 | 1006.1003.03 |
| Total Power Consumption Wattage/On-Mode Power | 30 | 50 | 100 |
| Product Voltage | 220-240 | 220-240 | 220-240 |
| Herts | 50/60 | 50/60 | 50/60 |
| IP Rating | IP65 | IP65 | IP65 |
| Luminous Flux | 2700 | 4500 | 9000 |
| Kelvin | 2700K/4000K/6500K | 2700K/4000K/6500K | 2700K/4000K/6500K |
| LED Package Type | SMD | SMD | SMD |
| Lamp/Bulb Specification (if not LED) | N/A | N/A | N/A |
| Lamp/Bulb included? | N/A | N/A | N/A |
| SDCM | ＜6 | ＜6 | ＜6 |
| CRI | ＞80 | ＞80 | ＞80 |
| Power Factor | >0.9 | >0.9 | >0.9 |
| UGR | >19 | >19 | >19 |
Function
| Code | 1006.1003.01 | 1006.1003.02 | 1006.1003.03 |
| Linkable | N/A | N/A | N/A |
| CCT function | N/A | N/A | N/A |
| Multi-section Power | N/A | N/A | N/A |
| Dimmable | N/A | N/A | N/A |
| Sensor | N/A | N/A | N/A |
| Emergency | N/A | N/A | N/A |
| Battery Spec. | N/A | N/A | N/A |
| Others ( Solar etc…) | N/A | N/A | N/A |
