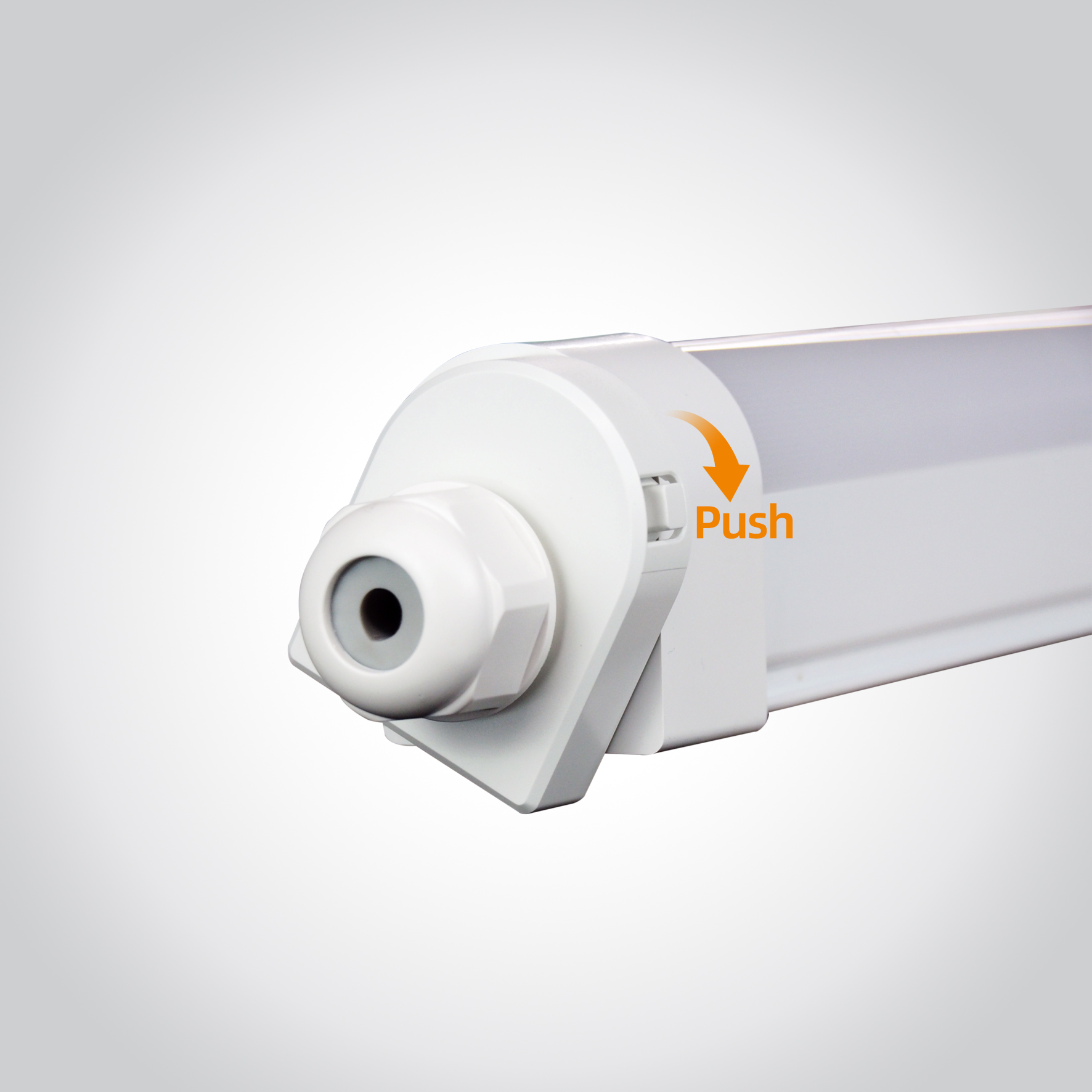

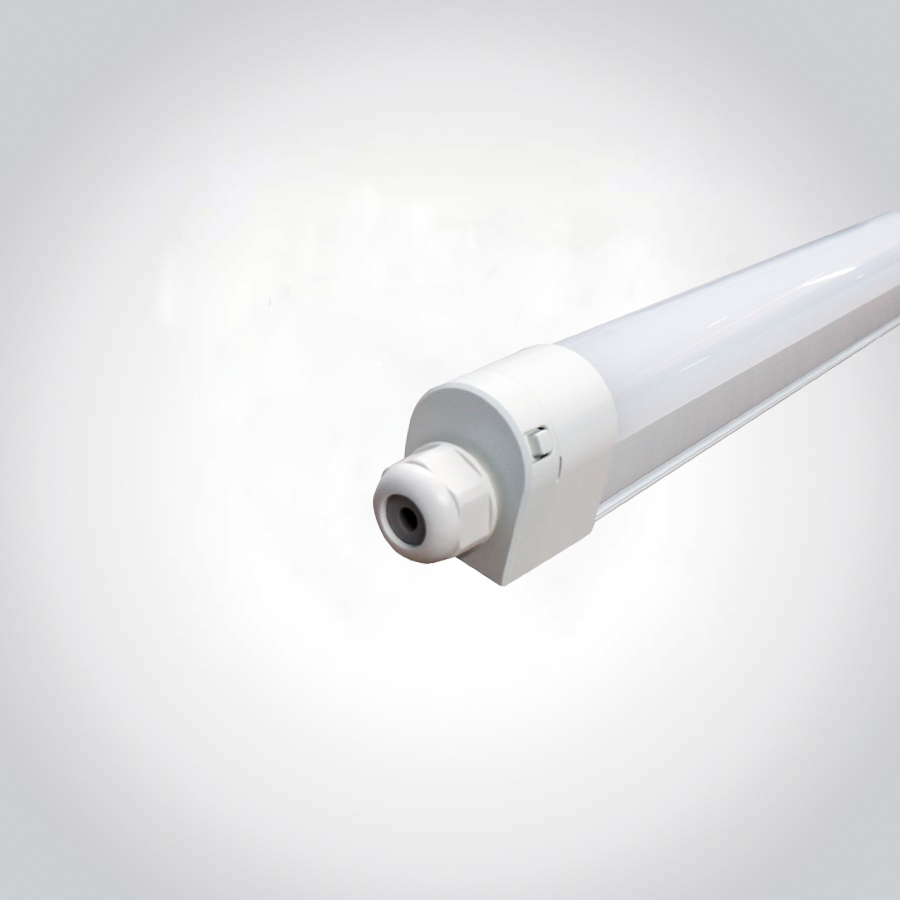

    IP65 Batten 1003.1021 IP65 Batten 1003.1021

    IP65 Batten 1003.1021

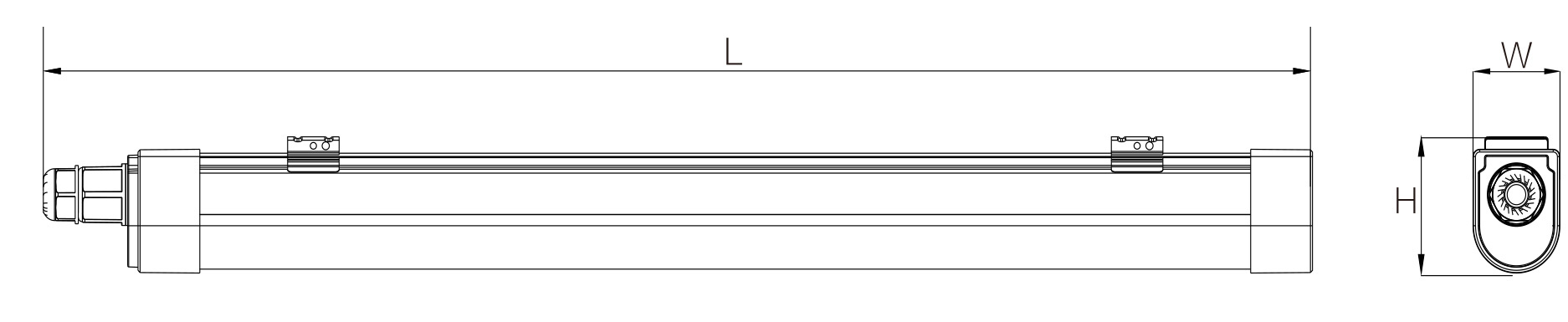

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1003.1021.011003.1021.021003.1021.03
    Product Dimensions (mm)L605×W47.5×H59.5mmL1205×W43×H47mmL1505×W43×H47mm
    Finish/ColorOpal +Gloss WhiteOpal +Gloss WhiteOpal +Gloss White
    MaterialPCPCPC
    On/Off SwitchNNN
    Cable Length (m)NNN
    Cable Spec.NNN
    PlugNNN
    Terminal Blockquick fit quick fit quick fit
    Accessoriesscrew,expansion bolts,fixing bracketsscrew,expansion bolts,fixing bracketsscrew,expansion bolts,fixing brackets
    InstallationSurface mountedSurface mountedSurface mounted
    Class 222




    Electrical Characteristics

    +
    Code1003.1021.011003.1021.021003.1021.03
    Total Power Consumption Wattage/On-Mode Power 183645
    Product Voltage220-240220-240220-240
    Herts50/6050/6050/60
    IP RatingIP65IP65IP65
    Luminous Flux216043205400
    Kelvin                            2700K/3000K/4000K/5000K/6500K
    LED Package TypeSMDSMDSMD
    LPW@4000K                                                     120lm/W
    Lamp/Bulb Specification (if not LED)N/AN/AN/A
    Lamp/Bulb included?N/AN/AN/A
    SDCM＜6＜6＜6
    CRI＞80＞80＞80
    Power Factor>0.5>0.9>0.9
    Beam Angle                                                        120o
    UGR>19>19>19




    Function

    +
    Code1003.1021.011003.1021.021003.1021.03
    LinkableYYY
    CCT function Optional Optional Optional
    Multi-section Power Optional Optional Optional
    Dimmable OptionalOptionalOptional
    SensorOptionalOptionalOptional
    EmergencyOptionalOptionalOptional
    Battery Spec.N/AN/AN/A
