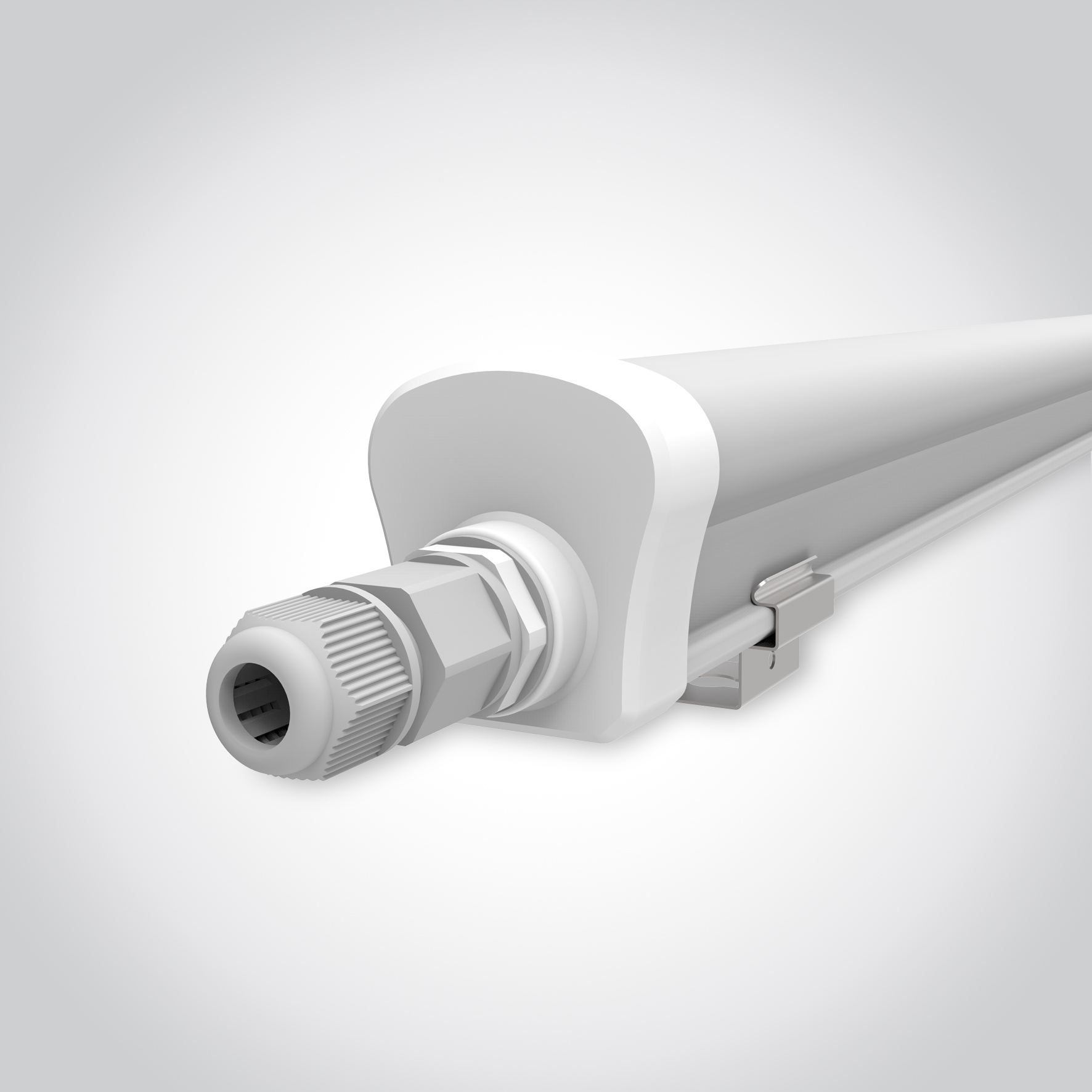

    IP65 Batten 1003.1020

    IP65 Batten 1003.1020

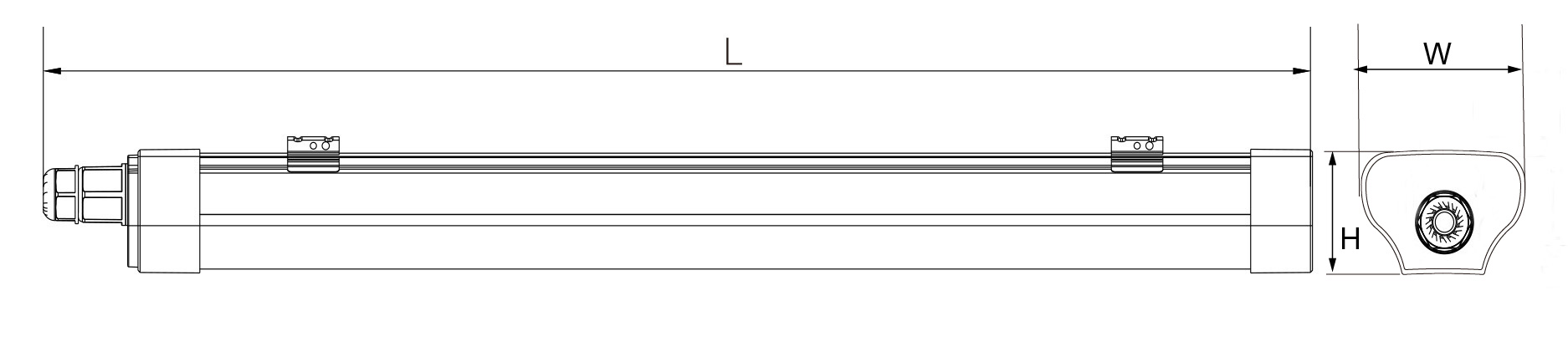

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1003.1020.011003.1020.021003.1020.031003.1020.04
    Product Dimensions (mm)L545×W43×H47mmL1145×W43×H47mmL1445×W43×H47mmL1745×W43×H47mm
    Finish/ColorOpal +Gloss WhiteOpal +Gloss WhiteOpal +Gloss WhiteOpal +Gloss White
    MaterialPCPCPCPC
    On/Off SwitchNNNN
    Cable Length (m)NNNN
    Cable Spec.NNNN
    PlugNNNN
    Terminal Blockquick fit quick fit quick fit quick fit
    Accessoriesscrew,expansion bolts,fixing bracketsscrew,expansion bolts,fixing bracketsscrew,expansion bolts,fixing bracketsscrew,expansion bolts,fixing brackets
    InstallationSurface mountedSurface mountedSurface mountedSurface mounted
    Class 2222



    Electrical Characteristics

    +
    Code1003.1020.011003.1020.021003.1020.031003.1020.04
    Total Power Consumption Wattage/On-Mode Power 18364560
    Product Voltage220-240220-240220-240220-240
    Herts50/6050/6050/6050/60
    IP RatingIP65IP65IP65IP65
    Luminous Flux1800378049506600
    Kelvin                                                2700K/3000K/4000K/5000K/6500K
    LED Package TypeSMDSMDSMDSMD
    LPW@4000K                                                             100-110lm/W
    Lamp/Bulb Specification (if not LED)N/AN/AN/AN/A
    Lamp/Bulb included?N/AN/AN/AN/A
    SDCM＜6＜6＜6＜6
    CRI＞80＞80＞80＞80
    Power Factor>0.5>0.9>0.9>0.9
    UGR>19>19>19>19



    Function

    +
    Code1003.1020.011003.1020.021003.1020.031003.1020.04
    LinkableYYYY
    CCT function Optional Optional Optional Optional
    Multi-section Power Optional Optional Optional Optional
    Dimmable OptionalOptionalOptionalOptional
    SensorOptionalOptionalOptionalOptional
    EmergencyOptionalOptionalOptionalOptional
    Battery Spec.N/AN/AN/AN/A
