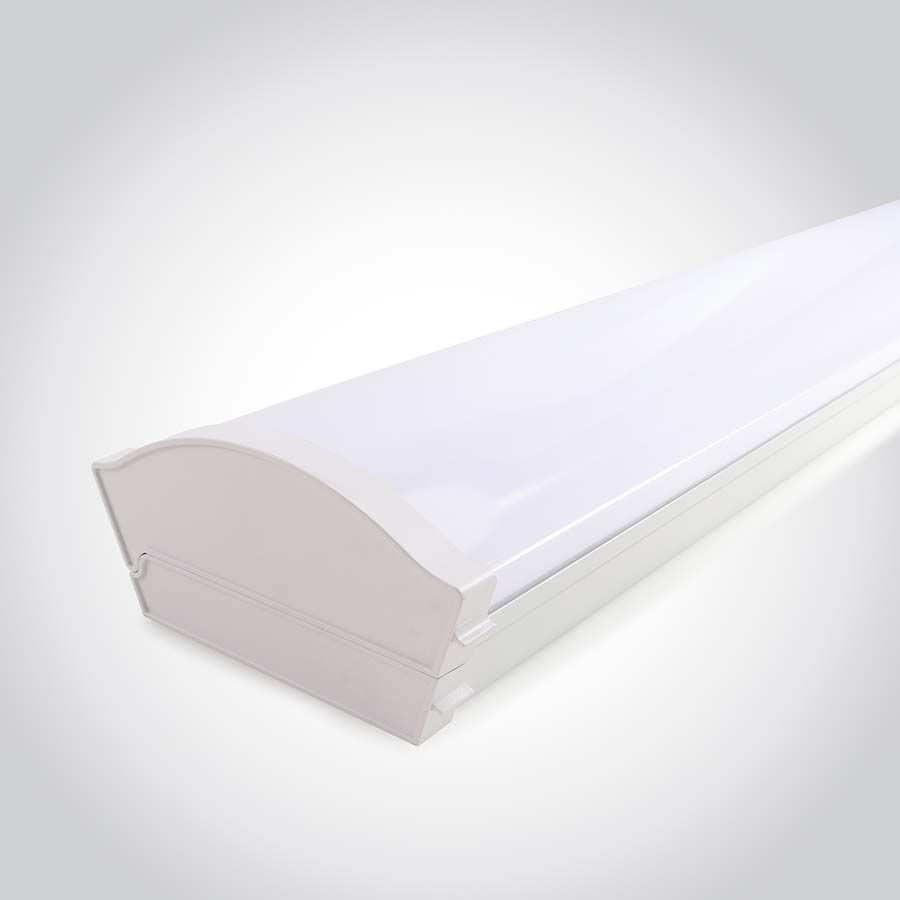

    IP20 Batten 1001.1026

    IP20 Batten 1001.1026

    Line Drawing
    Downloads
    Product PDF Product PDF

    Physical Specification

    +
    Code1001.1026.011001.1026.02
    Product Dimensions (mm)  L1200×W200×H97  mmL1500×W200×H97mm
    Finish/ColorGloss WhiteGloss White
    MaterialPC+IronPC+Iron
    On/Off SwitchNN
    Cable Length (m)NN
    Cable Spec.NN
    PlugNN
    Terminal Blockquick fit quick fit
    Accessoriesscrew,expansion boltsscrew,expansion bolts
    InstallationSurface mountedSurface mounted
    Class 11



    Electrical Characteristics

    +
    Code1001.1026.011001.1026.02
    Total Power Consumption Wattage/On-Mode Power 21/27/32/38
    		21/41/50/58
    Product Voltage220-240220-240
    Herts50/6050/60
    IP RatingIP20IP20
    LED Package TypeSMDSMD
    LPW@4000K130130
    Lamp/Bulb Specification (if not LED)N/AN/A
    Lamp/Bulb included?N/AN/A
    SDCM＜6＜6
    CRI＞80＞80
    Power Factor>0.5>0.5
    UGR>19>19



    Function

    +
    Code1001.1026.011001.1026.02
    LinkableYY
    CCT function Optional Optional
    Multi-section Power Optional Optional
    Dimmable OptionalOptional
    SensorOptionalOptional
    EmergencyOptionalOptional
    Battery Spec.N/AN/A
